IMAGE KING

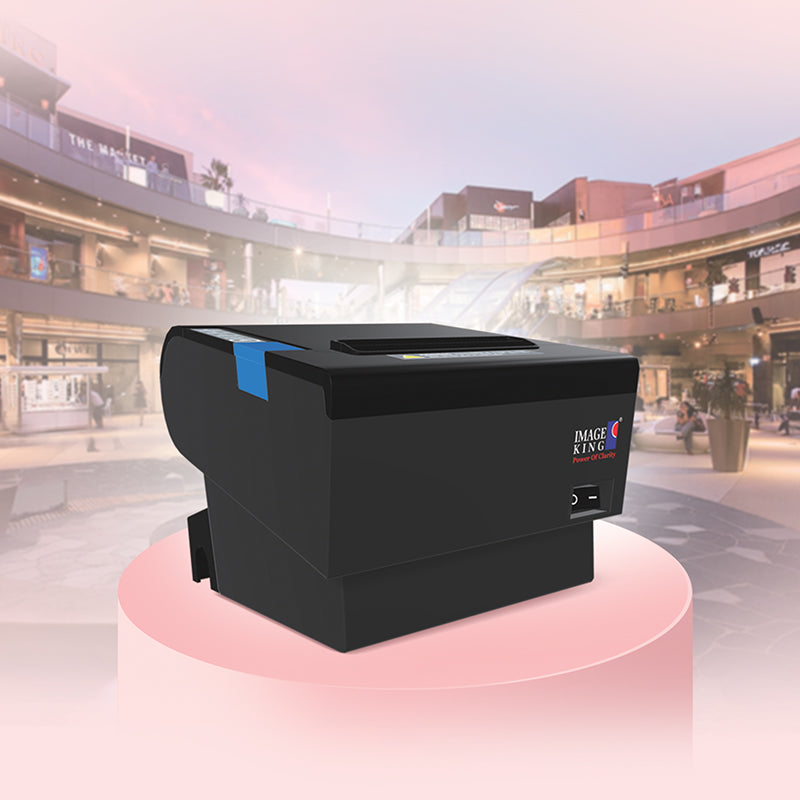

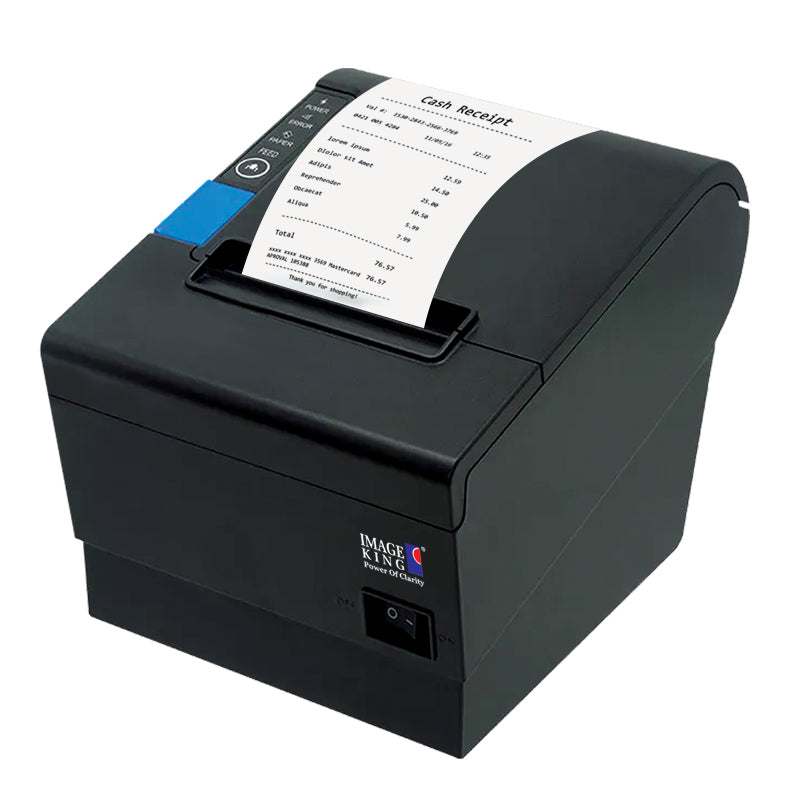

Thermal Billing Printer

Name: Thermal Billing Printer
Brand: IMAGE KING
Availability: InStock

Model - 7K222

Wherever cash and trade is, Imageking printer is there

Click here to download Brouchure

Quantity:

Download Drivers

Model:

Printing method: Direct thermal
Printing speed: 230 mm/s | 260 mm/s | 300 mm/s
Paper width: 80mm | 58mm / 80mm
Column capacity: 576 dots/line or 512 dots/line
Interface: USB/USB+Lan (Optional: BT/WiFi); | USB+Serial+Lan | USB+Serial+Lan | USB+Serial; (Optional:BT/WiFi) | Optional:BT/WiFi)
Line spacing: 3.75mm (Adjustable by commands)
Column number: 80mm paper: Font A-42 columns or 48 columns/Font B - 56 columns or 64 columns/
Simplified/Traditional Chinese - 21 columns or 24 columns
Character size: ANK, Font A: 1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm (9×17 dots) Simplified/Traditional Chinese: 3.0×3.0mm (24×24 dots)

Weight: 1.0 kg

Barcode Character

Extension character sheet: PC347 (Standard Europe) / Katakana / PC850 (Multilingual) / PC860 (Portugal) / PC863 (Canadian) / PC865 (Nordic) / West Europe / Greek / Hebrew/ East Europe / Iran/WPC1252/PC866 (Cyrillic #2) / PC852 (Latin2)/PC858/Iranil/ Latvian / Arabic/PT151 (1251)
UPC-A/UPC-E/JAN13 (EAN13)/JAN8
1D Barcode: Flash(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D Barcode: QR CODE | QR CODE/PDF417 | QR CODE/PDF417
Input buffer: USB / USB+Serial: 96 Kbytes, USB+Lan: 256 Kbytes | 256 Kbytes | 4096 Kbytes
NV Flash: 256 Kbytes

Power

Power adaptor: Input- AC 100~240V, 50~60Hz
Printer Input: DC 24V/2.5A
Cash drawer: DC 24V/1A

Physical Characteristics

Weight: 1.0 kg
Dimensions: 194.5x145x146.4mm

Environmental Requirements

Work environment: Temperature (0~45°C) humidity (10~80%)
Storage environment: Temperature (-10~60°C) humidity (10~90%)

Reliabilty

Auto cutter: Parital
Cutter life: 1.5 million cuts
Printer head life: 150km

Software

Emulation: ESC/POS
Driver: Windows/JPOS/Linux/OPOS/Android/Mac
Utility: Windows & Linux test Utility
SDK: iOS, Android, Windows

Thermal Billing Printer

Model - 7K222

Model:
